From SiMPore’s Basecamp thread …

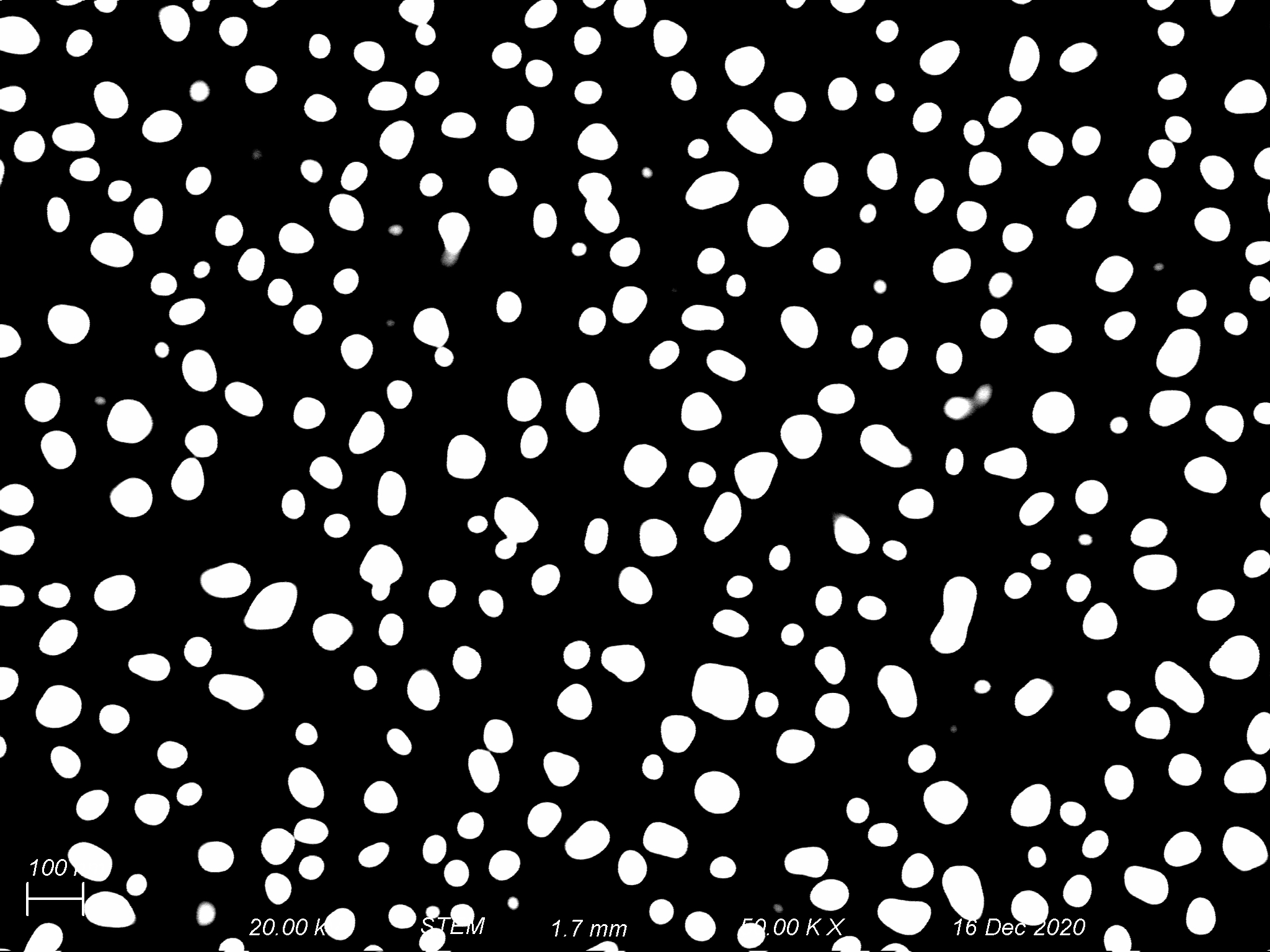

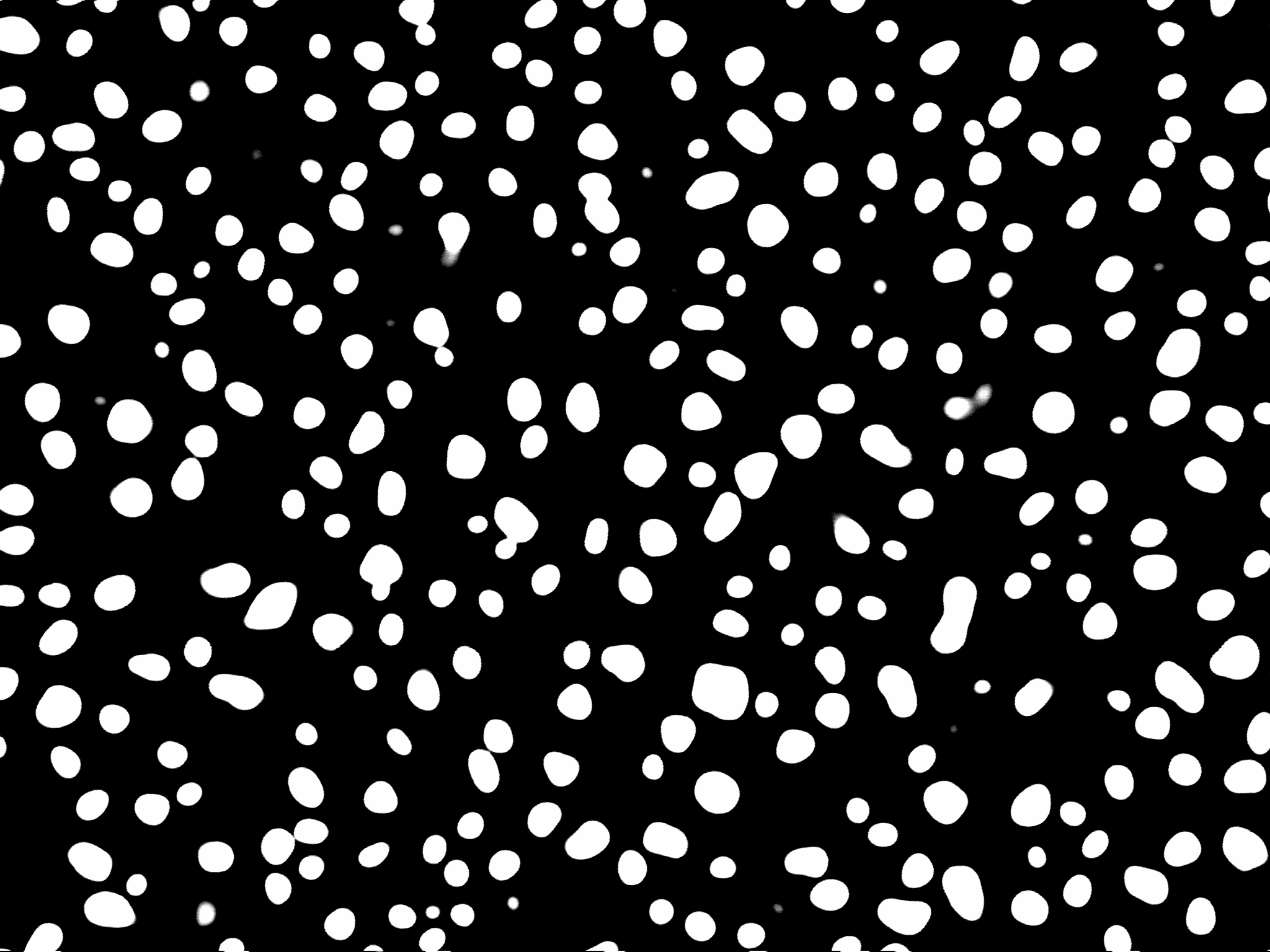

These are the nanopore characteristics. So between 14% and 20% porosity across the wafer and between 43 nm and 50 nm average pore size.
So a little under-sized. I hope T-Cells and Monocytes can get through!

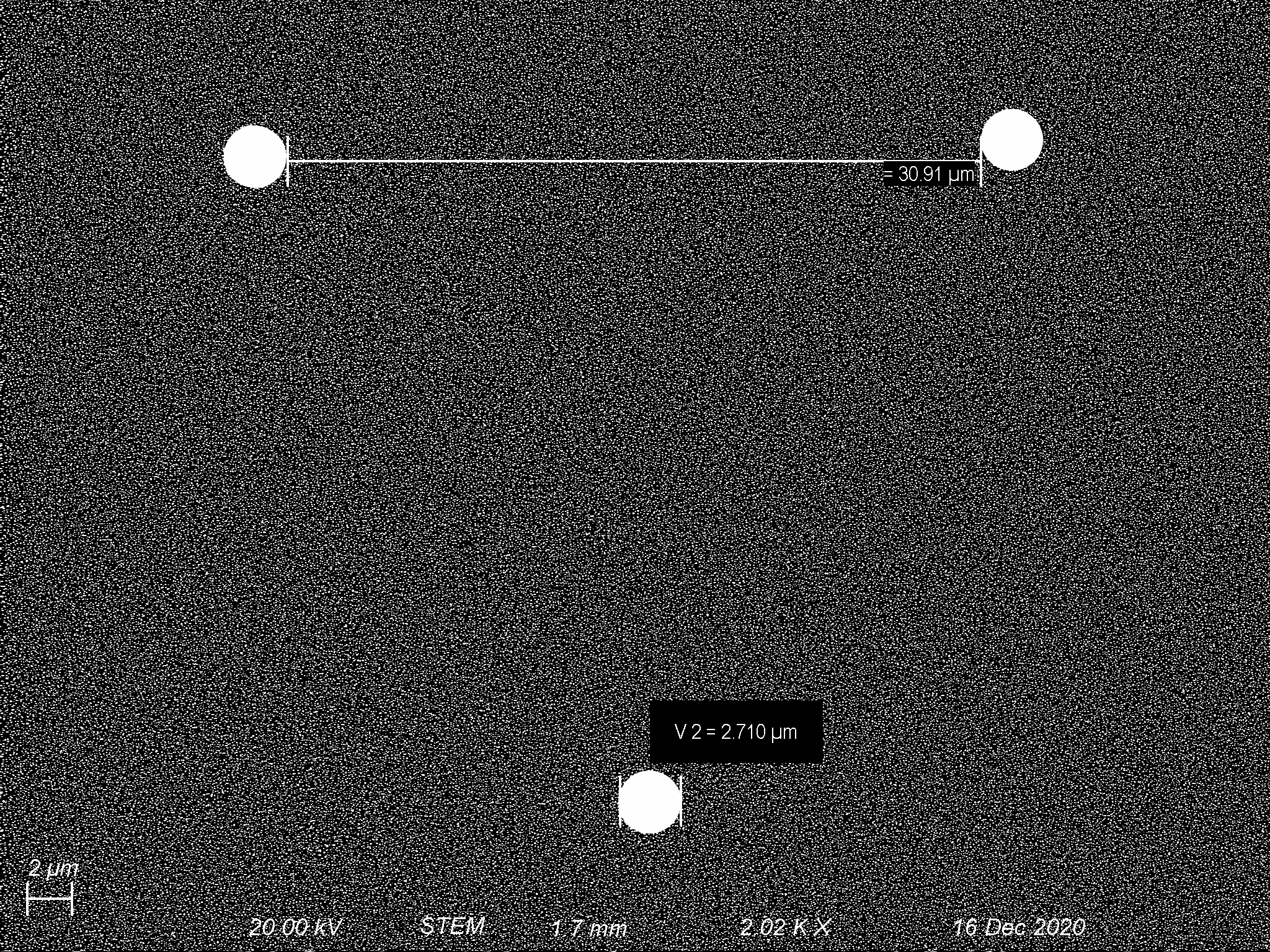

0.625% microporosity
0.625% microporosity
